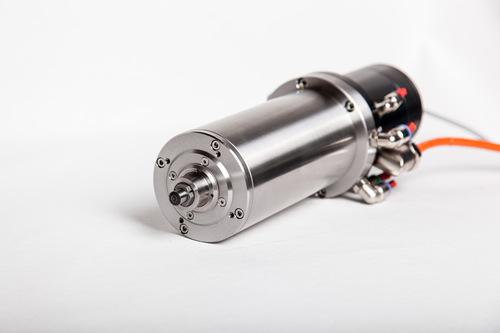

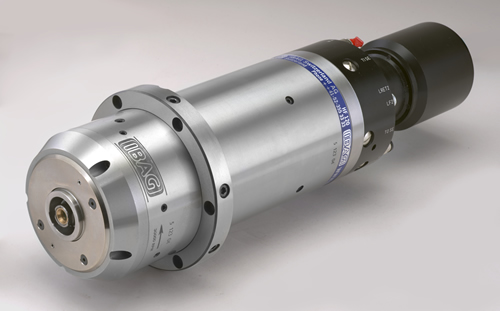

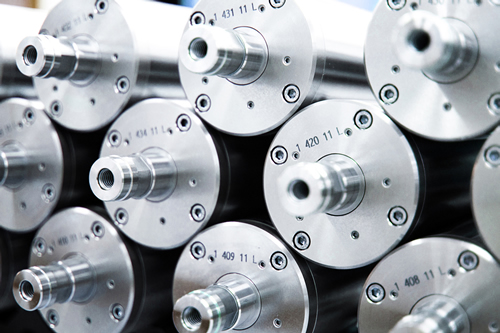

The IBAG medium water cooled spindle product line includes a range of 60 mm to 150 mm diameter high speed milling spindles. With maximum spindle rpm speeds up to 80,000 RPM and continuous power to 14kW, IBAG offers a wide variety of spindles to satisfy your high rpm milling, drilling, grinding, or mold and die applications.

High Speed Water Cooled Spindles for CNC Machining

Most spindles in this product category are liquid cooled and are available with both open loop and closed loop position control. Motor specifications are available to provide the speed, power, and torque you require. Coolant through the tool is optional with speeds up to 40,000 RPM. Click on the medium speed spindles below to see additional spindle specifications, HP/Torque curve, 3D Step and drawings or add to your quote today.


CNC Milling Spindle System Custom Features:

  • Full line of 60 ~ 150 mm spindles. Various speeds and power possible.
  • Automatic tool changing options featured with coolant through the tool.
  • Sealed, hybrid ceramic bearings with grease or oil mist lubrication.
  • Variable speeds up to a maximum of 80,000 RPM.
  • Powerful, AC/DC motor technology used. Closed-loop orientation possible.
  • Advanced electronic high frequency drives selected to optimize spindle performance.
  • High accuracy (<1 micron) and low vibration, balanced to G1 at maximum speed.
  • Rugged, reliable system with a one year warranty.

Custom High Speed Spindle Tool Clamping Styles

Both manual and automatic tool clamping styles are supported. For manual tool holding, a selection of high precision collets, including P10, ER16, ER25, and ER32 are offered. Automatic tool changing (ATC) systems are supported, including HSK25E, HSK32E, HSK40E, and SKI tapers. For ID grinding applications, grinding arbor interface is provided.

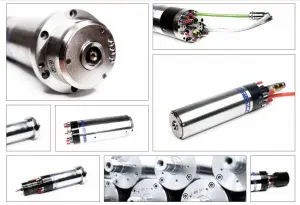

The complete system includes the IBAG spindle, electronic high frequency drive, air seal filter regulator, spindle chiller, collet, collet nut, and wrench set. Maximum tool diameter varies by tooling or collet type. View IBAG Medium Spindle Specs for spindle details.

CNC Machine Mid-Range IBAG Spindle Applications

The most popular applications include installation into a CNC machining center with full ATC integration. Due to their high power, medium CNC machine spindles can be used to cut a range of materials, including hardened steel, aluminum, brass, copper, graphite electrodes, and plastics. These high speed spindles can be used to machine components for a range of industries, including medical instruments and devices, graphite components for aerospace, nuclear, energy, and military use, and engraved components for nearly any market. General applications include milling, drilling, grinding, profiling, engraving, and mold and die finishing. Custom, multiple spindle systems are easily supported. Multi-spindle installations on special machines are also popular.

All IBAG spindle systems provide a one year warranty for rugged, reliable performance.

IBAG Spindles for Your High Speed CNC Machining Needs

IBAG spindles are a perfect solution to convert your medium spindle CNC machine to a high speed production center. Once implemented, the IBAG spindle machine integration will allow fully automatic spindle control, including direction and speed, and complete ATC operation. No permanent changes are made to the machine tool, so that if desired, the standard spindle can be reinstalled in the future. Request a quote or give us a call today at (203) 407-0397 with any questions.

Visit our resources page to learn more about the new spindle warm-up procedure.

For other helpful resources, check out our IBAG Video Resources or High Speed Spindle Frequently Asked Questions.
