Micro Porous Chuck

Request for Quote
Features:
  • Vacuum chucks using porous ceramic, bronze or aluminum.
  • Flat clamping surface does not deform work pieces.
  • Great for optics, soft materials, and thin work.

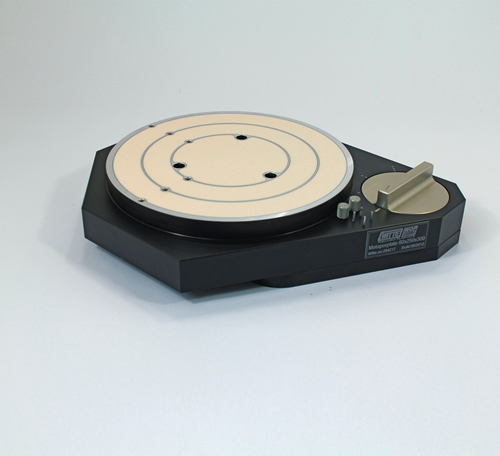

  • Ceramic chucks ideal for clean room and wafer inspection.
  • Metapor material available for custom 3-D fixture applications.

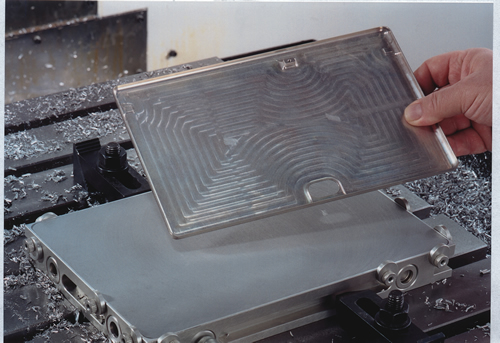

Micro Porous vacuum chucks are produced using extremely flat, porous material designed to clamp thin workpieces with high accuracy. The porous material used includes ceramic, Metapor CE100, MC100, BF100 porous aluminum, and sintered bronze. Each material has a different porosity that will affect the vacuum clamping capability of the chuck. The specific porous material used would be determined by the specific application requirements.

Micro Porous chucks are best suited for the light, dry processing of very thin materials, such as foils, paper, thin films and metal strips. This type of vacuum chuck has been supplied for semiconductor wafer applications, optics, electronics and precision inspection applications.

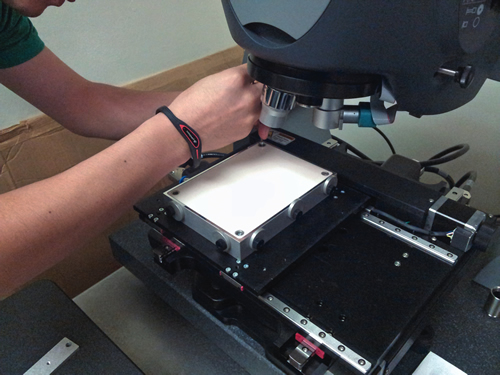

For inspection applications, Micro Porous chucks are available with a flatness specification of less than 5 microns. Due to the design of this chuck, the work piece is fully supported, and will not bend or deform into a slot or hole typically found in standard perforated vacuum chucks. This makes the Micro Porous chuck unique and best suited for super high accuracy measuring requirements.

Micro Porous chucks are available in stock sizes, as well as custom configurations for rectangular as well as circular chuck designs. Custom chucks, made to fit exact part sizes can be readily supplied based on customer specifications. Metapor material is also available in standard block sizes, to be used for special vacuum chuck applications and to produce dedicated 3-D vacuum fixtures.
